Reinforcement Learning

Isaac Lab training (current)

The Isaac Lab backend uses skrl with PPO. All training scripts live in aerial_gym/rl_training/isaaclab/.

Available environments

Script	Environment	Obs	Robot
train_skrl_position_setpoint.py	PositionSetpointEnv	13	base quad
train_skrl_sim2real.py	PositionSetpointSim2RealEnv	17	base quad + sensor noise
train_skrl_end_to_end.py	PositionSetpointEndToEndEnv	15	base quad, rot6D obs
train_skrl_x500.py	PositionSetpointX500Env	15	x500 (1.656 kg)
train_skrl_lmf2.py	PositionSetpointLMF2Env	17	lmf2 (1.24 kg)

Train

/path/to/isaacsim/python.sh \
    aerial_gym/rl_training/isaaclab/train_skrl_position_setpoint.py \
    --num_envs 4096 \
    --timesteps 5000000 \
    --headless

Checkpoints are saved to:

logs/skrl/<experiment_name>/<timestamp>_ppo_torch/checkpoints/
    agent_100000.pt
    agent_200000.pt
    ...
    best_agent.pt      ← highest reward seen during training

Resume training

/path/to/isaacsim/python.sh \
    aerial_gym/rl_training/isaaclab/train_skrl_position_setpoint.py \
    --checkpoint logs/skrl/position_setpoint_isaaclab/<run>/checkpoints/agent_1000000.pt \
    --num_envs 4096 --timesteps 5000000 --headless

Visualise in the GUI

/path/to/isaacsim/python.sh \
    aerial_gym/rl_training/isaaclab/play_skrl_position_setpoint.py \
    --checkpoint logs/skrl/position_setpoint_isaaclab/<run>/checkpoints/best_agent.pt \
    --num_envs 16

Use 16–32 envs for a responsive GUI. The play script:

1. Builds the same network architecture as training (from the YAML config)
2. Runs a warmup forward pass to initialize LazyLinear input shapes
3. Loads the checkpoint (weights + RunningStandardScaler statistics)
4. Runs the policy in eval mode (deterministic mean action)

PPO hyperparameters

Configs are in aerial_gym/rl_training/isaaclab/agents/. Key settings (same across all envs):

learning_rate: 3.0e-04          # fixed LR (no adaptive scheduler)
rollouts: 32                    # steps per env per rollout
learning_epochs: 4
mini_batches: 4
discount_factor: 0.99
ratio_clip: 0.2
state_preprocessor: RunningStandardScaler
rewards_shaper_scale: 0.01      # scales rewards before value estimation

Note on LR schedulers: KLAdaptiveLR was removed — it caused the learning rate to collapse to 0 within the first epoch due to KL oscillation. Use fixed LR.

---

Reward functions

Each environment has a standalone reward module that can be imported and tested without launching Isaac Sim:

Module	Used by
sim2real_reward.py	PositionSetpointSim2RealEnv, PositionSetpointLMF2Env (base)
end_to_end_reward.py	PositionSetpointEndToEndEnv, PositionSetpointX500Env
lmf2_reward.py	PositionSetpointLMF2Env

All reward functions are @torch.jit.script decorated for GPU performance.

sim2real reward structure

total = pos_reward + dist_reward
      + pos_reward × (speed_reward + action_penalty + closer_reward/10)
      + action_penalty + action_difference_penalty
      + closer_reward + yaw_error_reward

Crash condition: dist > 10 m → reward = -50, episode terminates.

lmf2 reward (acceleration-tuned)

Same structure but with asymmetric closer_reward:

closer_reward = where(dist < prev_dist,
    400 × (prev_dist - dist),    # approaching: +reward
    1200 × (prev_dist - dist),   # retreating:  -penalty (3× heavier)
)

---

Unit tests

The reward functions and rotation_utils are covered by 14 unit tests:

/path/to/isaacsim/python.sh -m pytest tests/test_isaaclab_rewards.py -v

These run in ~1.5 s with no GPU and no running simulator.

---

Isaac Gym training (legacy)

The original Isaac Gym RL training is preserved in git history but is no longer maintained. NVIDIA has deprecated Isaac Gym in favour of Isaac Lab.

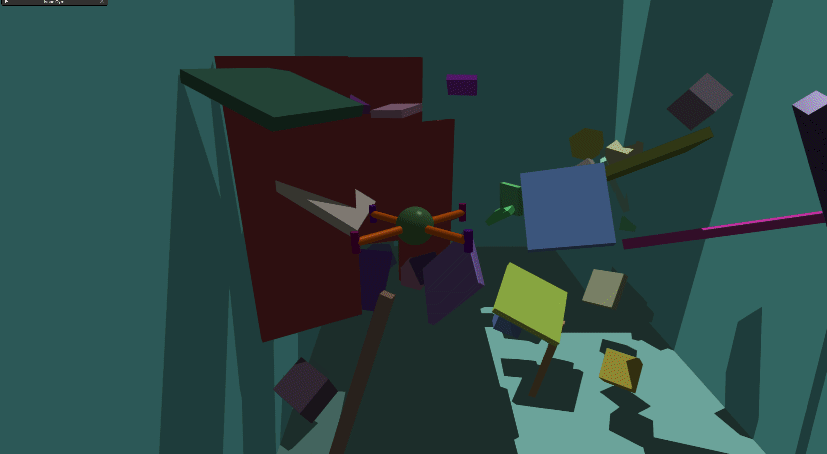

For historical reference: the navigation policy from Reinforcement Learning for Collision-free Flight Exploiting Deep Collision Encoding was trained using the Isaac Gym backend:

# Legacy only — requires Isaac Gym
cd examples/dce_rl_navigation
bash run_trained_navigation_policy.sh
